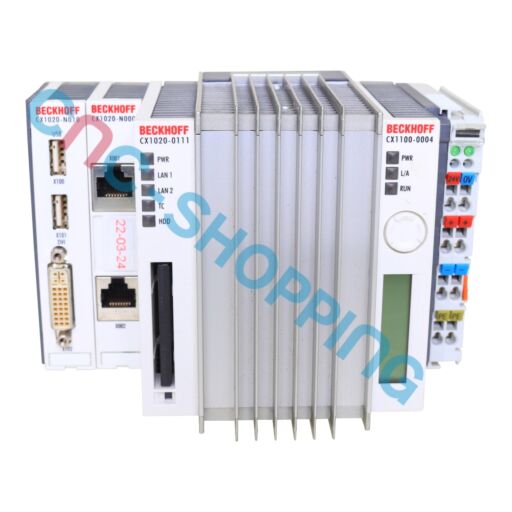

BECKHOFF CX1020-0111-1009 CPU module

Buy online your BECKHOFF CX1020-0111-1009 CPU module from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

The CX1020-0111-1009 from Beckhoff is a compact embedded industrial PC used as the central controller in automation and CNC control cabinets. It integrates PLC logic, motion control, and HMI functions in a single modular unit, typically running with TwinCAT software for real-time automation tasks.

This controller is widely used in machine tools, packaging systems, assembly lines, and robotic cells. It provides deterministic control performance when combined with Beckhoff I/O terminals and drive systems, enabling coordinated multi-axis motion and reliable machine sequencing.

The CX1020-0111-1009 is designed for DIN rail mounting inside electrical cabinets and connects directly to Beckhoff’s modular I/O system via the internal bus. It also communicates with industrial networks through Ethernet, allowing integration into factory-wide control and monitoring systems.

Its hardware configuration includes an Intel Celeron ULV 1.0 GHz processor, 256 MB DDR RAM (expandable to 512 MB), and 128 MB Compact Flash storage. It features 2 × 10/100 Mbps Ethernet ports, 4 × USB 2.0 ports, a DVI-I interface, and support for K-bus/E-bus terminals. The system operates on 24 V DC power supply with low power consumption, making it suitable for compact control panel designs.

This module is commonly used as a replacement CPU in existing Beckhoff systems, allowing fast recovery after controller failure, system corruption, or communication issues. Because it maintains compatibility with the existing I/O architecture, it can often be swapped without redesigning the control cabinet, minimizing downtime and commissioning effort.

In maintenance and retrofit scenarios, the CX1020 platform is valued for its modular design, long service life, and ease of replacement. It enables technicians to restore machine operation quickly while preserving the original wiring and field devices.

Manufactured in Germany, the CX1020 series is known for its robustness and reliability in industrial environments. It is frequently kept as a spare part in maintenance inventories to ensure rapid recovery of critical automation systems and minimize production downtime.

Frequently asked questions about CX1020-0111-1009:

Is this a drop-in replacement for an existing CX1020 with the same reference?
Yes, it is intended as a like-for-like replacement unit when the original controller carries the identical reference. This helps avoid re-engineering and keeps existing Beckhoff I/O and wiring intact.

What I/O systems can it work with?
It is designed for Beckhoff modular I/O used with the CX platform, including typical EtherCAT or K-bus terminal stacks depending on the installed side interface. Match the I/O bus to your current CX1020 configuration for direct compatibility.

Do I need to migrate licenses or application files?
Your machine program, runtime options and system image should be aligned with the original installation. Maintenance teams usually restore the backed-up image or deploy the validated project that matches the prior controller’s configuration.

What network ports are available?
The CX1020-0111 configuration includes integrated Ethernet and standard service interfaces used for programming and diagnostics. Port count and exact layout follow the CX1020-0111 hardware variant used on your machine.

Can this unit be used in a CNC retrofit?
Yes, it is commonly used in panel retrofits where a Beckhoff-based controller is required to run TwinCAT PLC/NC with existing drives and I/O. It is suitable for staged upgrades that prioritize minimal downtime and wiring changes.
