YASKAWA JZSP-CVP27-05-E Signal encoder cable Elbow 5m

Buy online your YASKAWA JZSP-CVP27-05-E Signal encoder cable Elbow from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

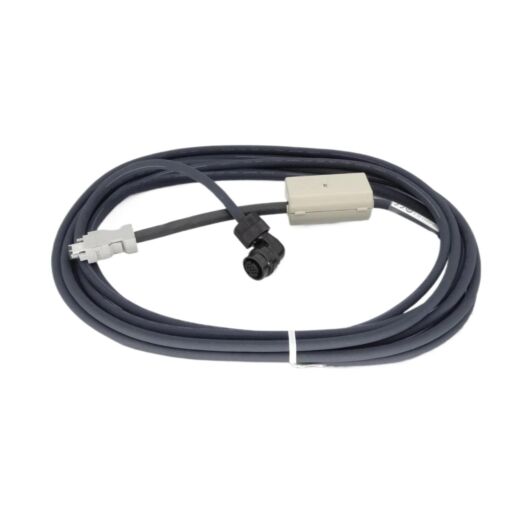

The YASKAWA JZSP-CVP27-05-E is a genuine encoder signal cable featuring a right-angle (elbow) motor-side connector, designed to transmit position and speed feedback signals between a Yaskawa servomotor and its compatible SERVOPACK amplifier. With a 5-meter length, it provides reliable encoder communication essential for accurate closed-loop axis control.

Its shielded construction helps preserve signal integrity by reducing electrical interference commonly generated by drives, contactors, and spindle systems in industrial environments. The elbow connector is specifically designed for installations with limited space, minimizing cable protrusion, improving bend-radius management, and reducing mechanical stress on the motor connection.

The JZSP-CVP27-05-E is intended for use with Yaskawa SGMGV series servomotors equipped with absolute encoders. It features a high-flex, high-bending-endurance design suitable for cable carriers and continuously moving applications. The assembly includes an MLX connector on the amplifier side, a right-angle connector on the motor side, and an attached battery case, all factory-terminated to ensure correct pin configuration and eliminate field wiring errors.

Commonly used on CNC machine tools, packaging machinery, and industrial automation equipment, this encoder signal cable is an ideal replacement when the original harness suffers from encoder alarms, unstable feedback signals, homing issues, insulation damage, or connector wear. Using the exact Yaskawa reference enables a fast, drop-in replacement without modifications or field crimping.

Manufactured in Japan to Yaskawa standards, each cable supplied by Cnc-shopping can be inspected by qualified engineers through continuity checks, pinout verification, and shielding integrity tests using appropriate CNC test equipment. The cable is packaged with protective materials suitable for industrial shipping and supplied with applicable warranty coverage. Repair services, exchange programs, and obsolete-part sourcing options may also be available to help maintain both current and legacy Yaskawa installations while minimizing machine downtime.

Can I substitute a different length from the same family?
Use the exact length and code recommended by the drive manual to maintain encoder signal quality. The 5 m variant replaces units with the same reference only.

Is it compatible with my Yaskawa servo and SERVOPACK?
Match the CVP27 family code, connector style and length to the motor encoder type and amplifier model listed in Yaskawa documentation. If the part number aligns, it is a safe drop-in.

Does this assembly require field termination?
No. It is a factory-terminated cable assembly. Install by routing and locking the connectors according to the OEM procedure, then secure with existing clamps and guides.

What are typical symptoms of a failing encoder cable?
Intermittent position errors, unexpected encoder alarms, axis following faults or vibration-sensitive loss of feedback often trace back to damaged shielding or connectors. Replacing with the exact reference typically resolves such issues.
